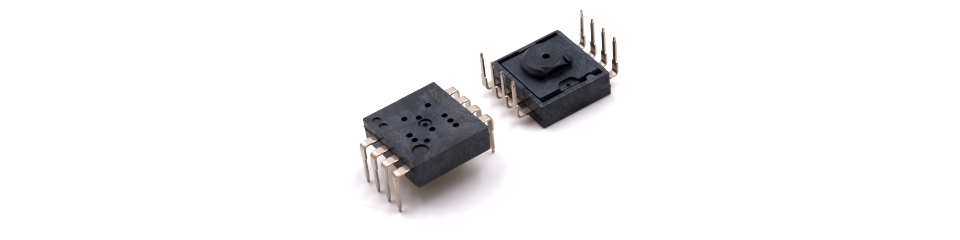

ADNS-5050

  • Small form factor optical mouse chip optimized for LED-based corded products
  • Housed in an 8-pin staggered dual in-line package (DIP)
  • High-speed motion detection of up to 30ips and 8g
  • With on-chip oscillator and built-in LED driver to minimize external components
  • To be used with 5100-001 lens for optimum performance
Package Type 8-DIP
Operating Voltage (V) 4-5.25
Run Current (mA) 16 (Sensor only)
Tracking Speed (ips) 30
Acceleration (g) 8
Resolution (cpi) 1,375
Frame Rate (fps) 4,500
Lift Cutoff (mm)
Interface 3-wired SPI
LED Type
